Iblai Vibe Agent Grader

/iblai-vibe-agent-grader

Add the agent Grader tab -- set up how the agent grades work against a rubric you define. A master "Grading" toggle attaches/detaches the Grading tool on the agent and gates three sub-tabs: Grading setup (what gets graded, how much feedback is shared, and the required grading instructions), Rubric (a criteria table with modal-based add/edit/delete and a running points total), and Results (every grade the agent has issued, with human overrides that are pushed back to the LMS the grade came from). Great for essays, projects, and practice exercises. This is one tab in the wider agent-settings family. All tabs share the same AgentSettingsProvider wrapper.

Common setup (brand, conventions, env files, verification): see docs/skill-setup.md.

Prerequisites

• Auth must be set up first (/iblai-vibe-auth)
• MCP server + skills configured (@iblai/mcp in .mcp.json)
• AgentSettingsProvider must wrap the route (see /iblai-vibe-agent-setting Step 2 if not already set up)
• Ask the user for a real mentorId (agent UUID). Do NOT invent one.

Step 1: Check Environment

Before proceeding, check for an iblai.env in the project root. Look for PLATFORM, DOMAIN, and TOKEN variables. If the file does not exist or is missing these variables, tell the user: "You need an iblai.env with your platform configuration. Download the template and fill in your values: curl -o iblai.env https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/iblai.env"

Step 2: Mount AgentGraderTab

// app/(app)/agents/[mentorId]/grader/page.tsx
"use client";

import { AgentGraderTab } from "@iblai/iblai-js/web-containers/next";

export default function AgentGraderPage() {
  return (
    <div className="flex h-full flex-col bg-white">
      <AgentGraderTab />
    </div>
  );
}

AgentGraderTab reads tenantKey, mentorId, and username from AgentSettingsProvider. No props are required for the standard mount.

Step 3: Customize Labels (Optional)

import { AgentGraderTab } from "@iblai/iblai-js/web-containers/next";

<AgentGraderTab
  labels={{
    header: { title: "Auto-grading" },
    subTabs: { rubric: "Scoring rubric" },
  }}
/>;

Step 4: Use MCP Tools for Customization

get_component_info("AgentGraderTab")
get_component_info("AgentSettingsProvider")

<AgentGraderTab> Props

Import from @iblai/iblai-js/web-containers/next.

What the tab renders

• Header — "Grader" title and description.
• "Grading" capability toggle — attaches/detaches the Grading tool on the agent (the sole activation switch on the backend). Off hides the sub-tabs and shows a hint; anything already set up is kept safe if grading is later turned off.
• Misconfiguration warning — grading only runs when the tool is attached AND a config exists AND the rubric has at least one criterion. An amber warning appears whenever the toggle is on but the setup or the rubric is still missing.
• No-access state — when the current user lacks permission for the grading endpoints (403), the gated content is replaced by a "No access to grading settings" notice.

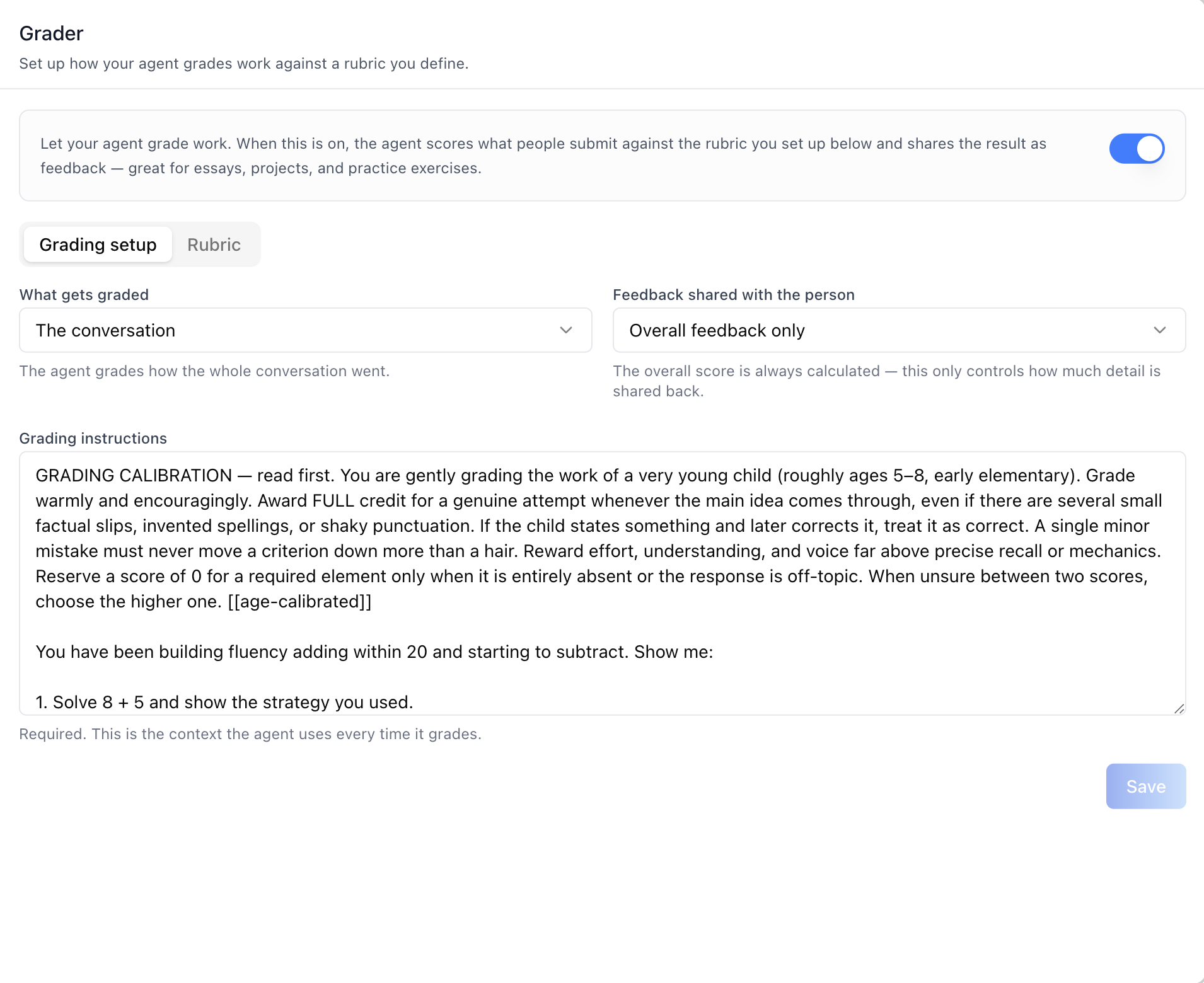

Grading setup sub-tab

Save is enabled once the instructions are non-empty and something changed. The first save creates the config; later saves update it.

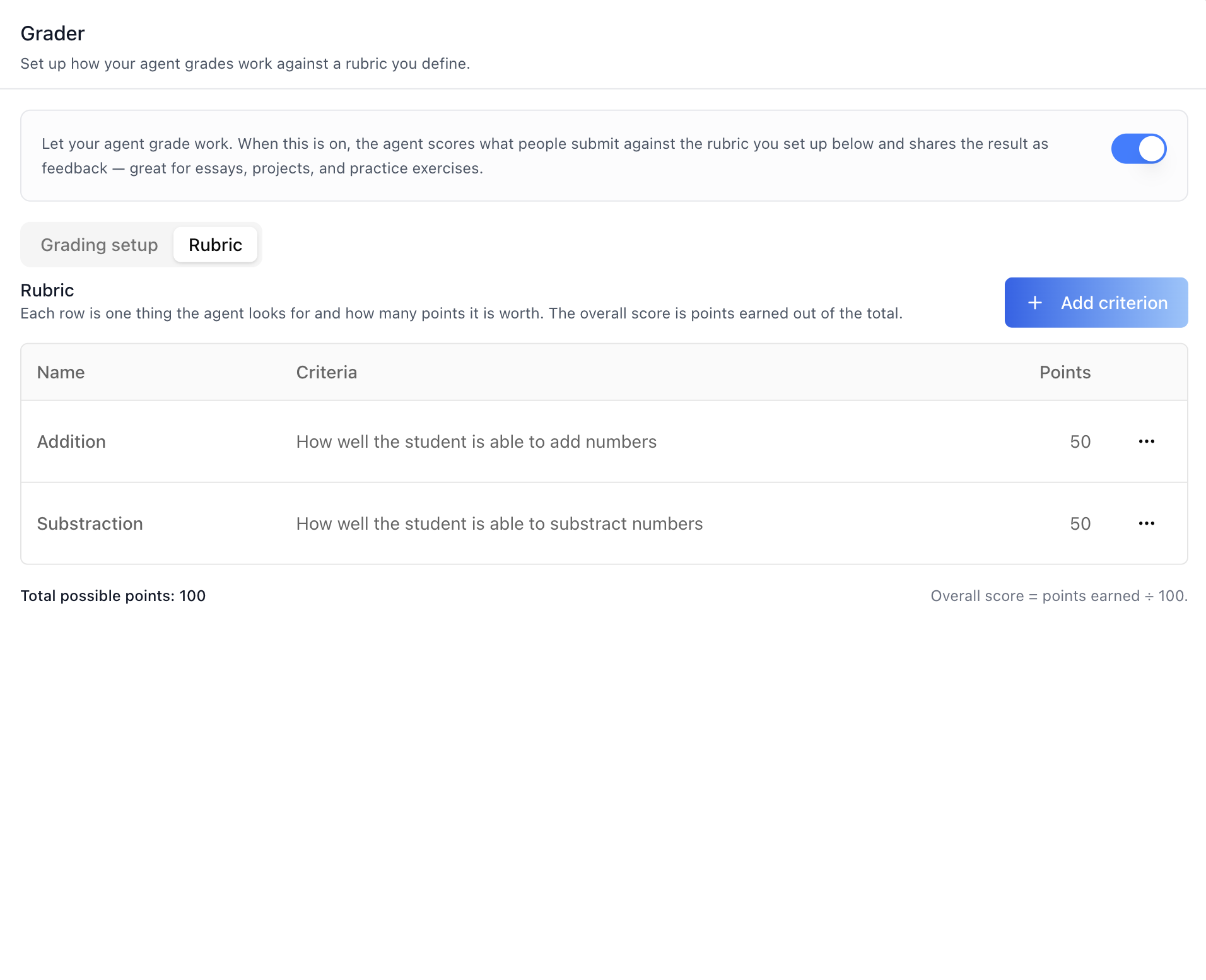

Rubric sub-tab

Each row is one thing the agent looks for and how many points it is worth; the overall score is points earned out of the total.

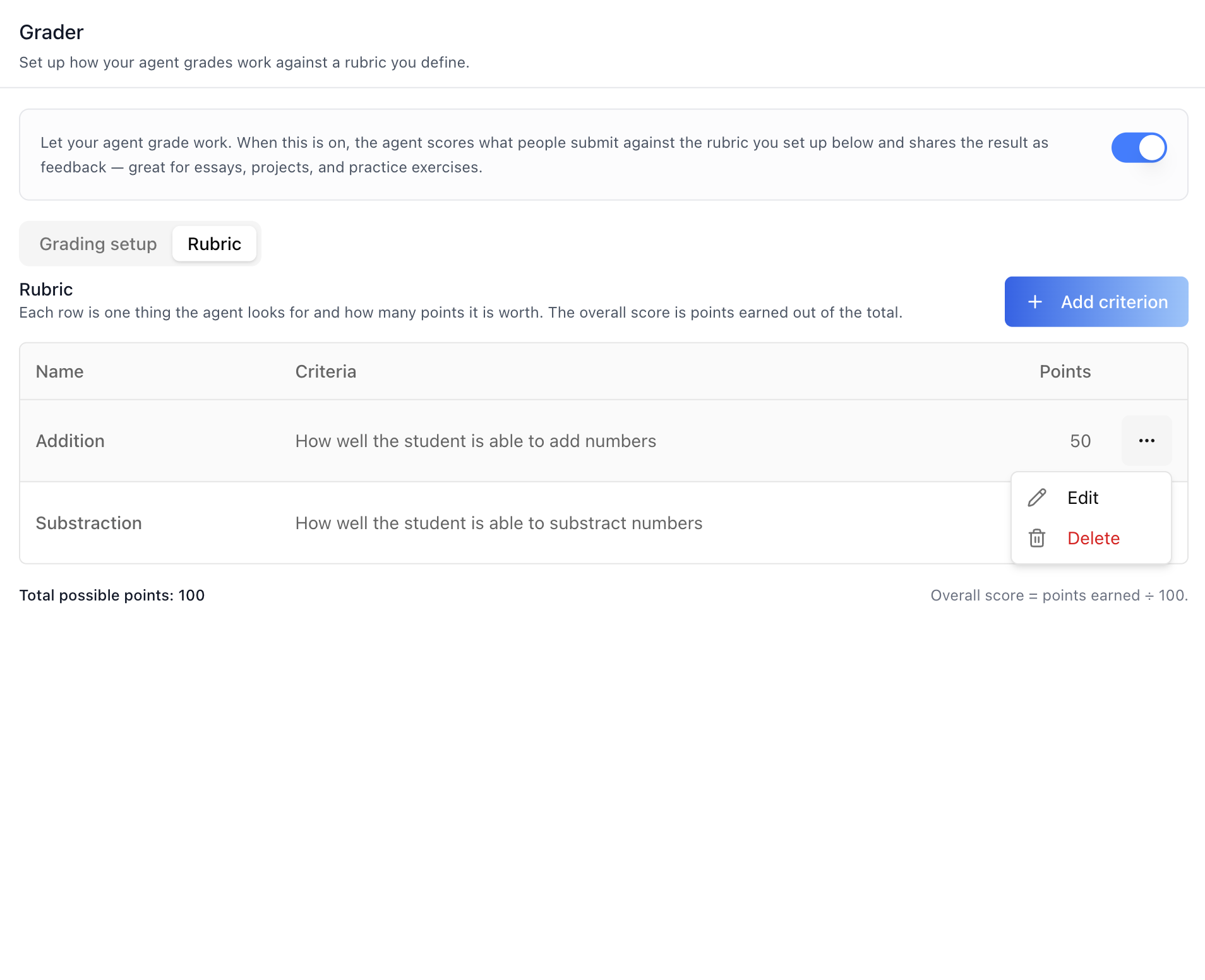

• Criteria table — Name, Criteria, Points, and a per-row actions menu (Edit / Delete).

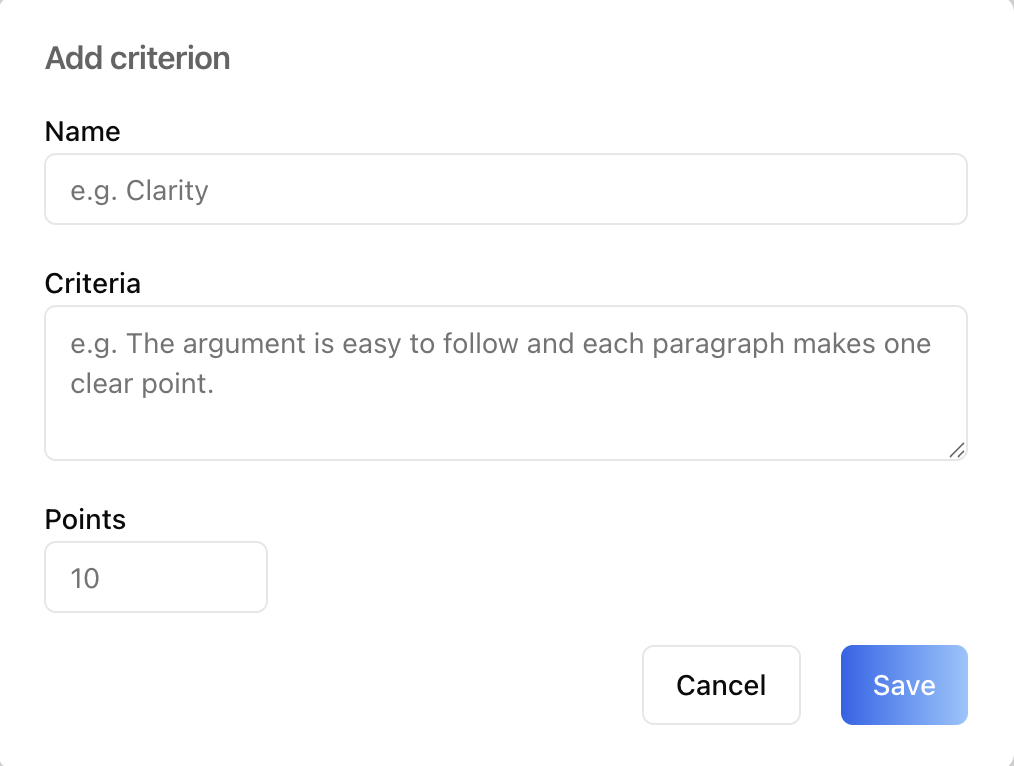

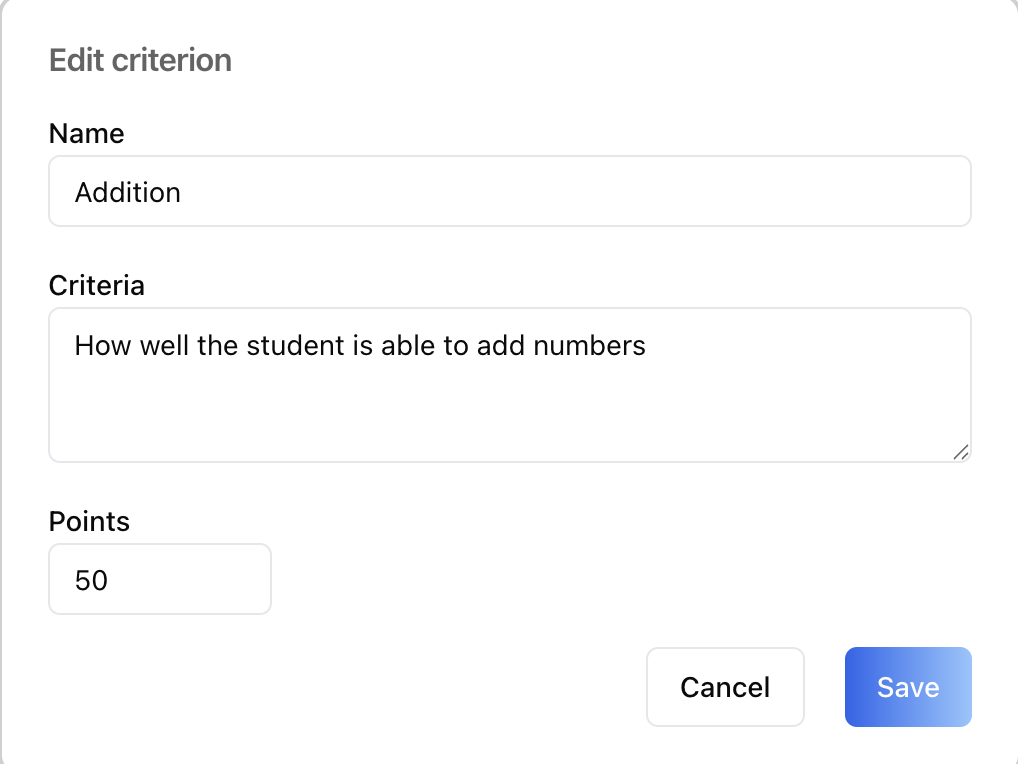

• Add/Edit criterion modal — Name (required, e.g. "Clarity"), Criteria (required — describes what earns the points), Points (positive number).

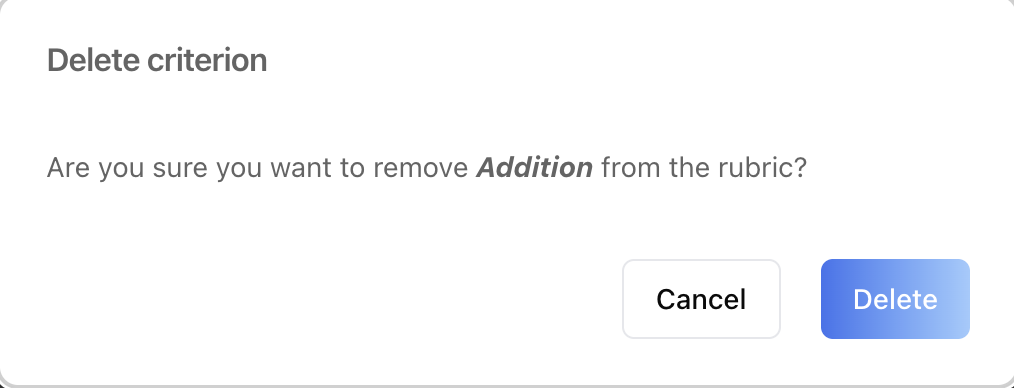

• Delete criterion modal — confirmation before removal. The last criterion can't be removed while grading is set up — add another first.
• Footer — "Total possible points: N" and "Overall score = points earned ÷ N."
• Until the grading setup is saved, the rubric shows a hint to save the setup first.

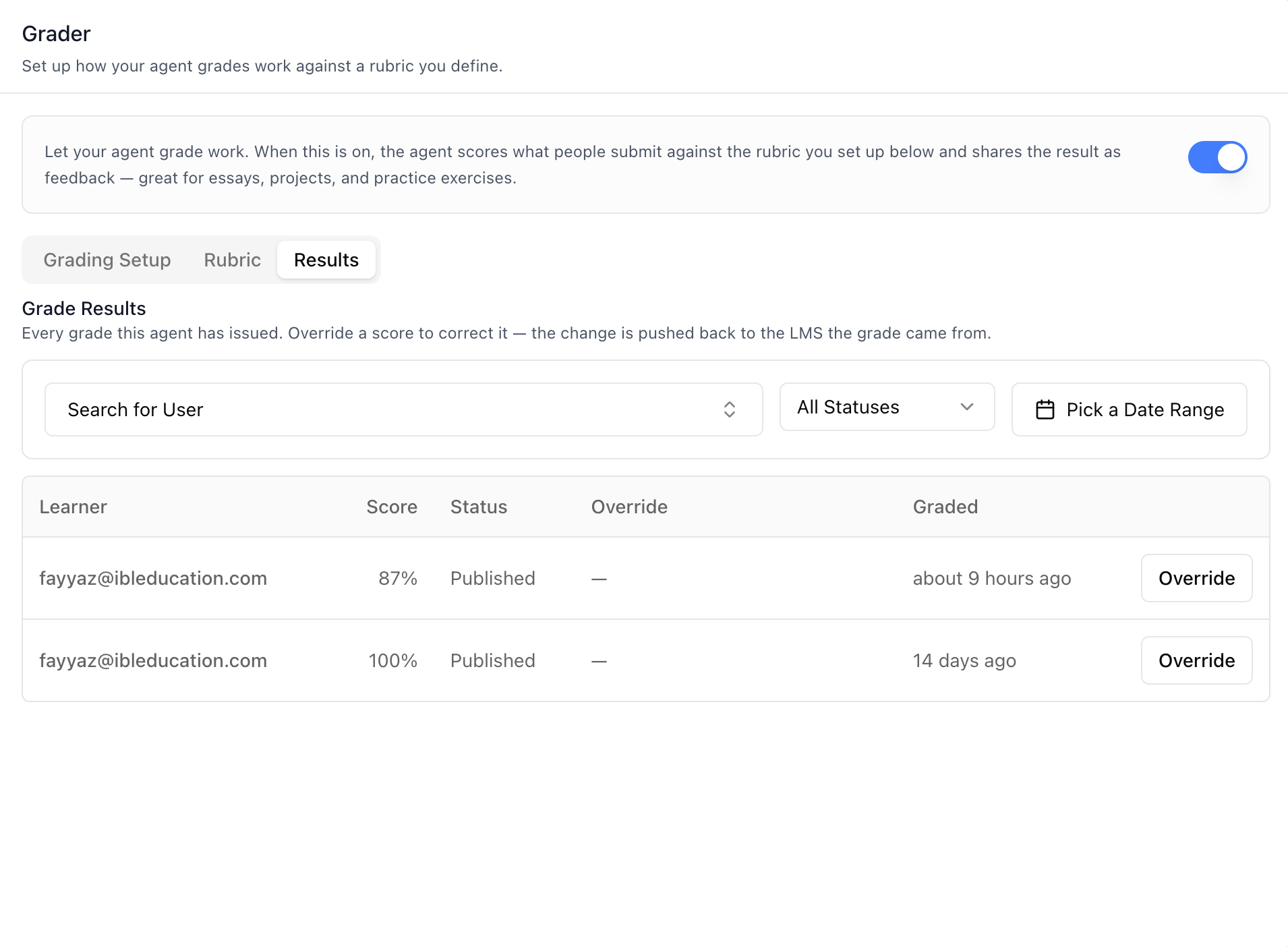

Results sub-tab

Every grade this agent has issued. Override a score to correct it — the change is pushed back to the LMS the grade came from.

• Filters — a searchable user combobox (the same user list as the History tab's user filter, with an "All Users" reset), a status select (All Statuses / Pending / Published / Failed), and a date-range picker (two-month calendar).
• Results table — 10 rows per page: User email, Score (the effective score as a percent), Status, Override (shows "Overridden · score · status" when one exists, otherwise —), Graded (time-ago), and an Override button per row (only for users with the override_grade_results permission).

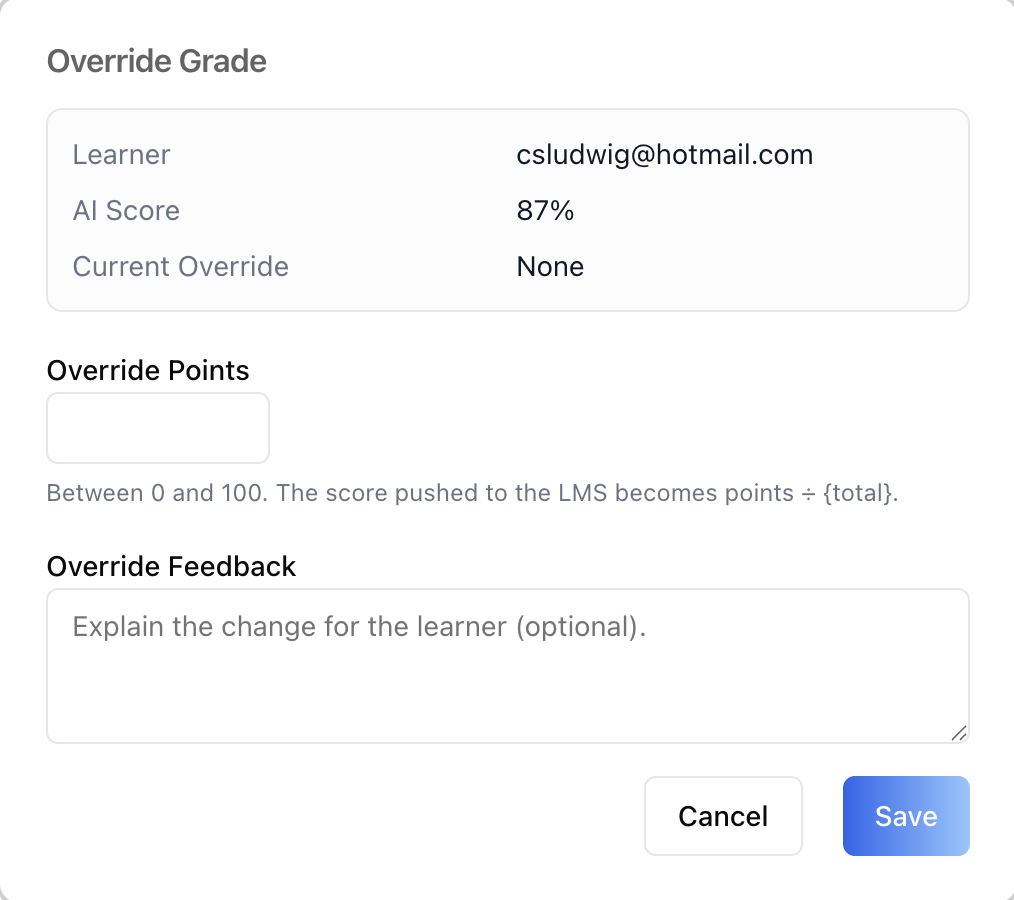

• Override Grade modal — shows the user, AI score, and current override, then collects Override Points (0 up to the rubric's total, capped at 100; the score pushed to the LMS becomes points ÷ total) and optional Override Feedback explaining the change for the user. When an override already exists, a Clear button removes it and restores the AI score.

Related Exports

From @iblai/iblai-js/web-containers/next:

• AGENT_GRADER_TAB_LABELS -- the default agent-facing label bundle.
• GraderTabLabels -- type for the full label bundle.
• AgentGraderTabProps -- props type for the tab.
• GRADING_TOOL_NAME -- the tool name ("Grading") the toggle matches on. Detection uses the tool name, not the slug — slugs default to a UUID and are not stable across environments.

From @iblai/data-layer -- the RTK Query hooks and types the tab uses, for custom UI built on the same endpoints:

• Config: useGetMentorGraderConfigurationQuery, useCreateMentorGraderConfigurationMutation, useUpdateMentorGraderConfigurationMutation
• Criteria: useListGraderCriteriaQuery, useCreateGraderCriterionMutation, useUpdateGraderCriterionMutation, useDeleteGraderCriterionMutation
• Results: useListGradeResultsQuery, useGetGradeResultQuery, useOverrideGradeResultMutation, useGetChatHistoryFilterQuery (the user filter list)
• Toggle: useGetMentorSettingsQuery, useGetToolsQuery, useEditMentorMutation
• Types: MentorGraderConfiguration, GradingMode, FeedbackMode, GradeResult, GradeResultPublishStatus, CreateMentorGraderConfigurationRequest, CreateGraderCriterionRequest, UpdateGraderCriterionRequest

Step 5: Verify

Run /iblai-vibe-ops-test before telling the user the work is ready:

1. pnpm build -- must pass with zero errors
2. pnpm test -- vitest must pass
3. Start dev server and touch test:

   pnpm dev &
   npx playwright screenshot http://localhost:3000/agents/<id>/grader /tmp/agent-grader.png


Important Notes

• Redux store: Must include mentorReducer and mentorMiddleware
• initializeDataLayer(): 5 args (v1.2+)
• @reduxjs/toolkit: Deduplicated via webpack aliases in next.config.ts
• Peer deps: sonner and @iblai/iblai-web-mentor must be installed (pnpm add sonner @iblai/iblai-web-mentor)
• Shared provider: AgentSettingsProvider must wrap the route at a layout level. See /iblai-vibe-agent-setting Step 2 for the full snippet.
• Activation is a tool attachment: The toggle adds/removes the Grading tool in the agent's tool_slugs (same state as the Tools tab — /iblai-vibe-agent-tool). If the Grading tool is not in the organization's catalogue, turning the toggle on shows an error toast.
• Config survives disable: Detaching the tool deliberately leaves the grader config and rubric untouched — rubric work survives disable/re-enable. Attaching the tool auto-provisions the config row.
• First-run 404 is normal: A missing grader config (404) is the documented first-run state, not an error — the first save creates it.
• RBAC: With enableRBAC on, every grader action is checked as a flat action on the agent resource (/mentors/{dbId}/#<action>): read_grader_config, create_grader_config, write_grader_config, view_grader_criteria, create_grader_criteria, write_grader_criteria, delete_grader_criteria, view_grade_results, override_grade_results. Sub-tab triggers only render for permitted views (the default sub-tab is the first viewable one), the Override button requires override_grade_results, and a user with no viewable sub-tab sees the no-access notice. Older permission trees without these actions are treated as allowed.
• Brand guidelines: BRAND.md
